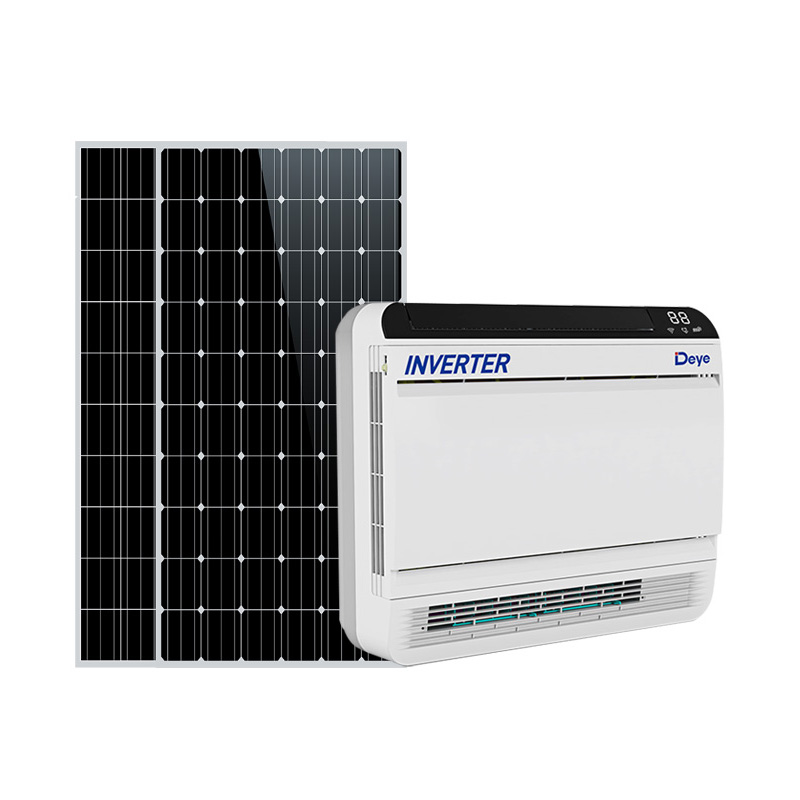

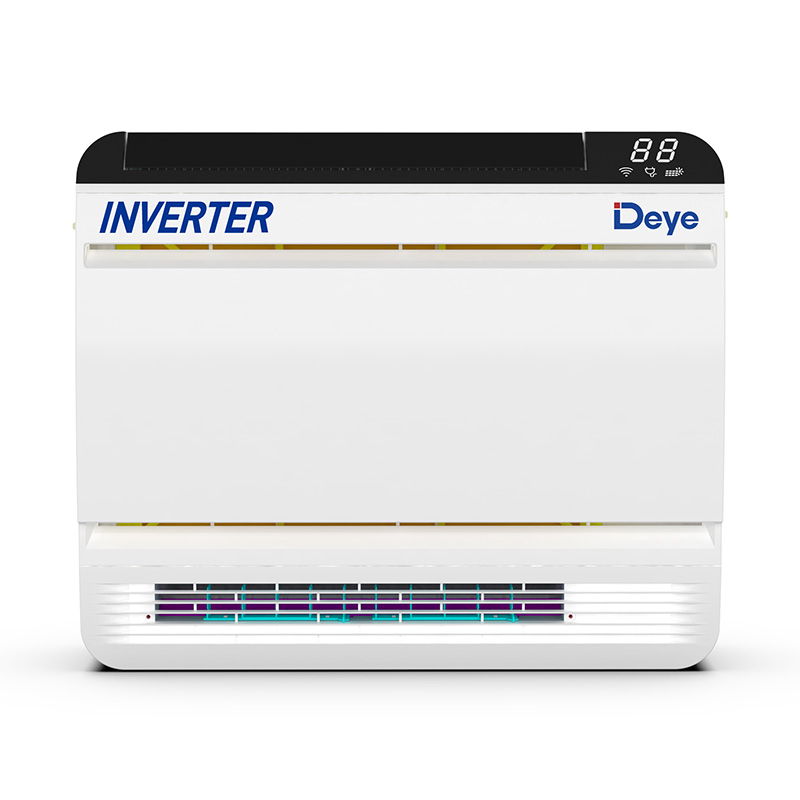

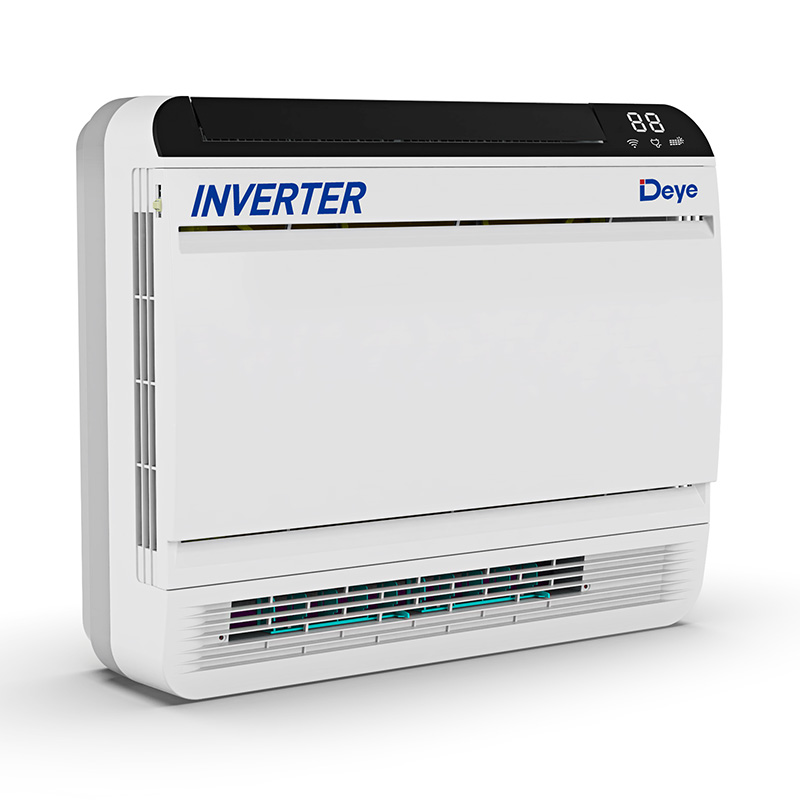

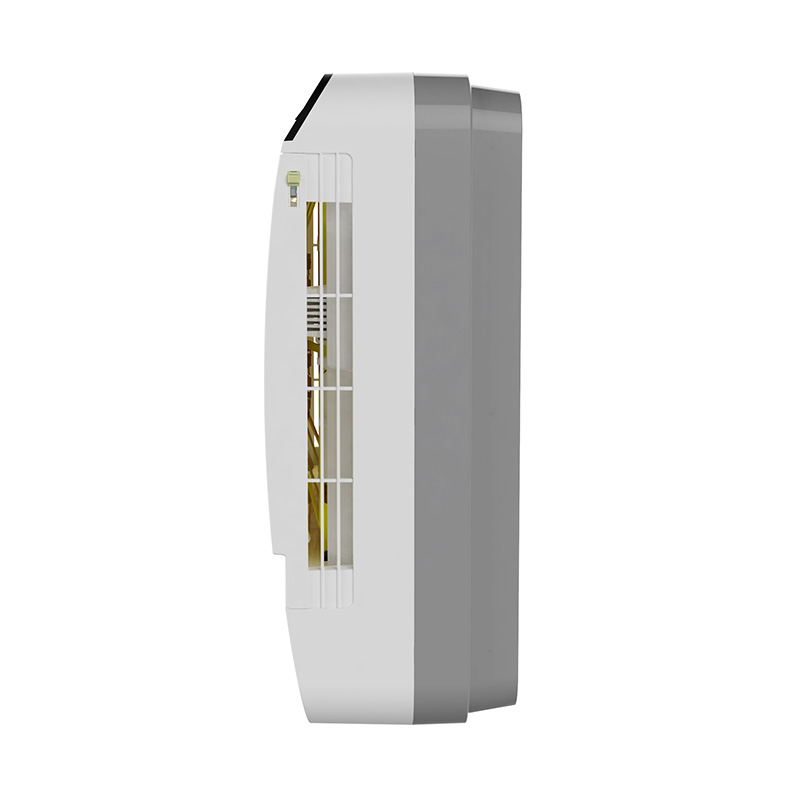

Solar Air Source Floor Console Heat Pump ACDC R410A/R32-Zhejiang Deye HVAC Technology Co., Ltd.

A Hot Air Blower (Hybrid AC/DC) integrates solar power with traditional grid electricity to provide efficient heating solutions. This type of blower is ideal for applications for residential:
1. Heating: As the temperature decreases, many families will buy hot air blowers as auxiliary heating equipment to make the indoor temperature more comfortable. Especially in families without central heating facilities, it can meet the needs of winter heating.
2. Drying: In the wet season or need to dry clothes quickly, the hot fan can dry clothes quickly to avoid moisture and mold.

Hybrid AC/DC Operation:
- Utilizes both AC power from the grid and DC power from solar panels.
- Automatically switches between power sources to optimize energy use and reduce costs.

Solar Panel Integration:
- Equipped with solar panels to harness solar energy, significantly reducing reliance on grid electricity.
- Solar panels are typically installed on the roof or in an open area with maximum sun exposure.

Inverter Technology:
- Uses inverter technology to adjust the heating output according to demand.
- Provides precise temperature control and reduces energy consumption.

High Efficiency Heating Element:
- Incorporates a high-efficiency heating element for rapid and consistent heating.
- Designed to operate efficiently even in low-temperature conditions.

Easy installation:
- The design of hot air blowers often takes into account the convenience of installation, such as the appearance of small size, the installation process is similar to the installation of air conditioning, flexible and convenient.

ITEMS		UNIT	12000BTU	18000BTU	18000BTU
MODEL		/	DRWA1-ACDCR1-35	DRWA1-ACDCR1-50	DRWLA1-ACDC-18KR2
Power supply（ACDC）	Power AC	Ph-V-Hz	208V-240V/50-60HZ	208V-240V/50-60HZ	208V-240V/50-60HZ
	Voc	V	80-380V	80-380V	80-380V
	Isc	A	</=14A	</=14A	</=14A
	Suggested Solar Panel （300-360W）	PCS	3-4	5-6	5-6
Rated Cooling	Capacity(35℃)	BTU	12000(4100-14300)	15300(4200-17000)	15300(4200-17000)
	Power input(35℃)	W	1000(220-1350)	1350(210-1800)	1295(210-1750)
	EER (35℃)	BTU/W	12.00	11.33	11.80
	SEER(EN14825:2018)	W/W ★	6.68 A++	6.54 A++	6.60 A++
Heating	Capacity(7℃)	BTU	12300(4100-15700)	17700(4100-18400)	17700(4100-18400)
	COP (7℃)	BTU/W	12.95	12.20	12.64
	Capacity(-10℃)	BTU	11200(4100-15000)	15300(4100-18700)	15300(4100-18700)
	COP (-10℃)	BTU/W	9.26	8.50	8.50
	Capacity(-22℃)	BTU	11200（4100-12600）	14300(4100-15000)	14300(4100-15000)
	COP (-22℃)	BTU/W	2.00/6.80	1.86/6.35	1.86/6.35
	SCOP(Average)	W/W ★	4.61 A++	4.11 A+	4.20 A+
	SCOP(Colder)	W/W ★	3.44 A	3.41 A	3.46 A
Indoor unit	Dimension(W×H×D)	mm	720×610×233	720×610×233	720×610×233
Indoor unit	Packing (W×H×D)	mm	810×720×300	810×720×300	810×720×300
Outdoor unit	Dimension(W×H×D)	mm	790×560×290	900×700×337	900×700×337
Outdoor unit	Packing (W×H×D)	mm	910×405×622	1006×755×418	1006×755×418

Deye Technology Group was established in 1990. The products include solar inverters, variable frequency air conditioner controllers.DC solar water pump controllers, heat pump air conditioners and other products.
